Marine Compound Engine

March 2010.

John R. Bentley 2010.

Machining the
-  for the Stuart Compound Launch Engine  -

(Part 2 of the crankshaft assembly page)

The dual eccentrics are each twenty degrees from being directly opposed (total of 120 degrees apart)

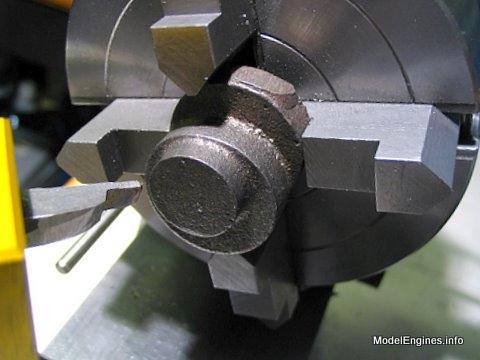

Four-jaw chucks were just made for eccentric turning!

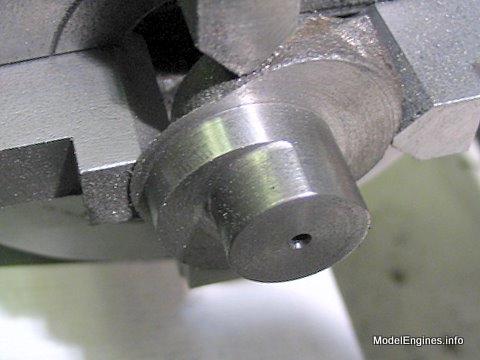

Finishing the collar and facing the outer eccentric

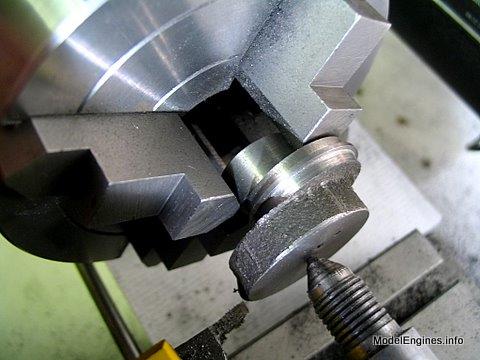

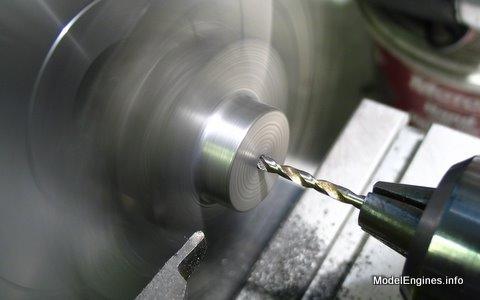

Pilot drilling the shaft hole

Centres located 140 degrees apart

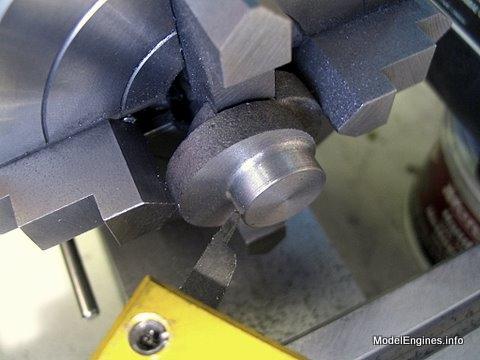

Inner eccentric faced-turned

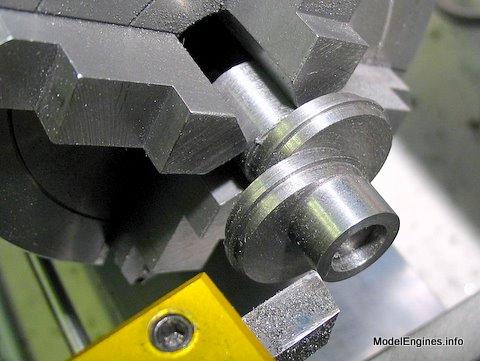

Turning the rim on the outer eccentric

Reversed in the chuck - now ready to turn the inner eccentric rim and face the back side

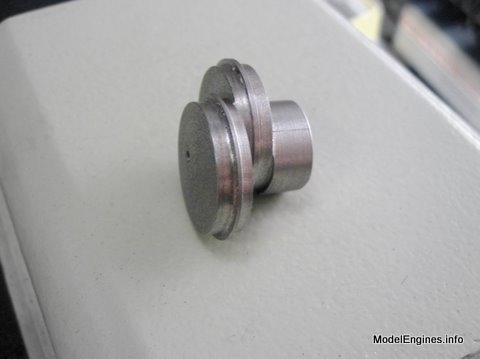

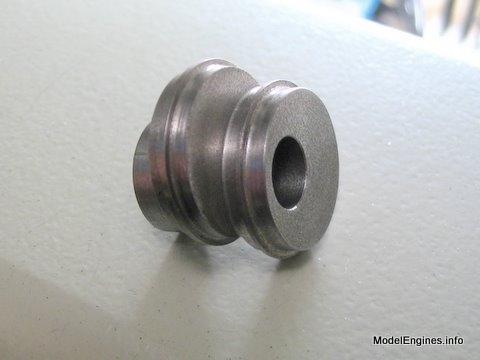

The basic shape

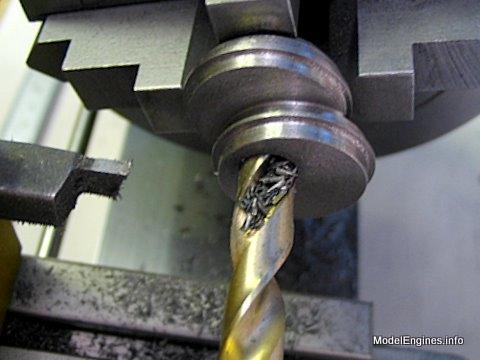

Drilling out in preparation to reaming to final 5/16" size

I would feel a lot better using undersize reamers on this cast iron - the smaller diameter holes tend to come out plenty large. The gunmetal is the opposite - small reamed holes (and tapped holes) are tight.

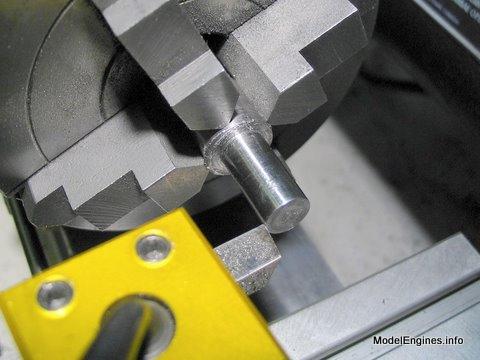

Turning a stub mandrel to form the collar exactly concentric with the shaft

Turning on the stub will prevent the collar from appearing to wobble when rotating

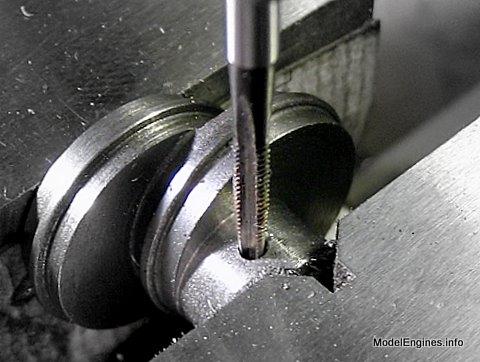

Tapping for the grub screws (setscrews)

The screws supplied are plenty long - better than too short

I will either cut them shorter or drill deep dimples in the shaft
when the final position is determined
